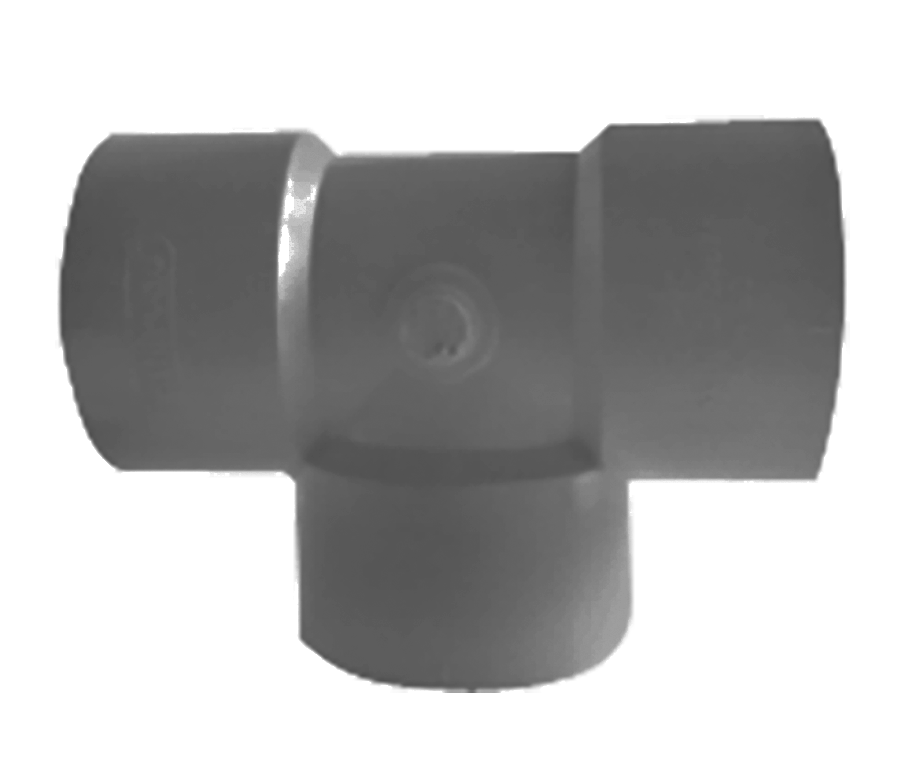

This unique CPVC fitting has a vertical pipe running from end to end complimented with a pipe socket of a different diameter at a 90-degree angle. The reducer tee is handy for connecting pipes across two directions and circumferences to optimize water-flow across different pressure pipes.

Technical Details

Dimensions in cms

Size	ID-1	OD-1	WT-1	SL-1	ID-2	OD-2	WT-2	SL-2	L	H
1⁄2 x 1⁄2 x 3⁄4”	16.08	21.26	2.59	12.70	22.45	27.63	2.59	17.78	62.5	44.0
3⁄4 x 1⁄2 x 3⁄4”	22.45	27.63	2.59	17.78	16.08	21.26	2.59	12.70	62.5	44.0
1⁄2 x 3⁄4 x 1⁄2”	16.08	21.26	2.59	12.70	22.45	27.63	2.59	17.78	62.5	44.0
3⁄4 x 3⁄4 x 1⁄2”	22.45	27.63	2.59	17.78	16.08	21.26	2.59	12.70	40.0	62.5
1 x 1 x 1⁄2”	28.83	33.56	2.59	22.86	16.08	21.26	2.59	12.70	46.4	78.0
1 x 1 x 3⁄4”	28.83	33.56	2.59	22.86	22.45	27.63	2.59	17.78	51.0	78.0
11⁄4 x 11⁄4 x 1⁄2”	35.20	41.56	3.18	27.94	16.08	21.26	2.59	12.70	53.0	94.5
11⁄4 x 11⁄4 x 3⁄4”	35.20	41.56	3.18	27.94	22.45	27.63	2.59	17.78	58.0	94.5
11⁄4 x 11⁄4 x 1”	35.20	41.56	3.18	27.94	28.83	33.56	2.59	22.86	62.0	94.5
11⁄2 x 11⁄2 x 1⁄2”	41.66	49.18	3.76	33.02	16.08	21.26	2.59	12.70	62.0	111.0
11⁄2 x 11⁄2 x 3⁄4”	41.66	49.18	3.76	33.02	22.45	27.63	2.59	17.78	66.0	111.0
