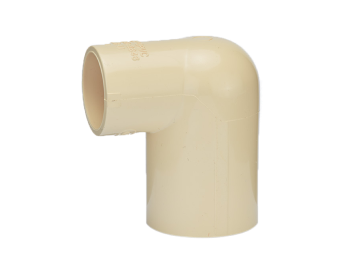

Reducer elbows are used to connect CPVC pipes of varying diameters. The primary function of reducer fittings like the reducer elbow is to regulate the flow of water by phasing water flow from a larger to a smaller pipe.

Technical Details

Dimensions in cms

IN	ID-1	OD-1	WT-1	SL-1	ID-2	OD-2	WT-2	SL-2	L	H
¾ *½”	22.45	27.63	2.59	17.78	16.08	21.26	2.59	12.70	26.3	28.1
1 * ½”	28.83	33.56	2.59	22.86	16.08	21.26	2.59	12.70	33.1	39.4
1 * ¾”	28.83	33.56	2.59	22.86	22.45	27.63	2.59	17.78	34.0	40.2
